IP65 Emergency Bulkhead with Legends

5 Year Warranty

A high performance maintenance free LED Panel with Tpa as standard. Uniform light distribution for multiple applications.

Key Features

20mm side, end and rear cable entries
Hinged screwless gear tray for ease of installation
Viewing distance 18 metres

Find a Stockist

Options

Emergency (Self Test)

Emergency

Technical Spec

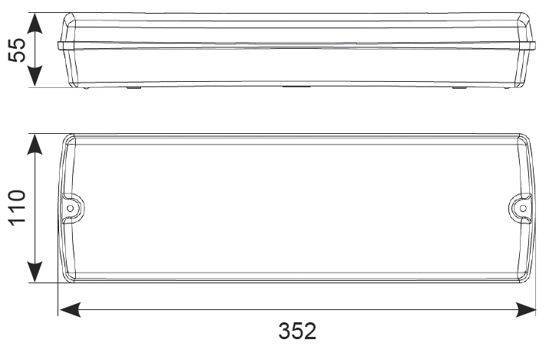

Length

352 mm

Input Input Voltage provided to a luminaire by the power supply.	220-240V
Hertz Hertz Cycles (frequency) per second.	50/60Hz
Temp Temp The operating temperature of a light fitting indicates the safe temperature range in which it can be installed. Exceeding this range can reduce the lifespan. Adhering to specified temperatures ensures optimal performance and longevity.	0°C - 40°C
Lifetime Lifetime Lumen Depreciation figures published refer to the L50, L70 or L80 classification system where the number relates to the percentage of light output. So a 30,000hr L70 LED would be expected to have 70% of its rated output at 30,000hrs. LED’s are subject to very small operating temperature parameters and figures quoted are typically at 25°C.	L70 36,000h
CRI CRI Colour Rendering Index, known as CRI or Ra. The appearance of surface colours when illuminated by light from a given (CRI/Ra) source. Good colour rendering implies similarity of appearance to that under an acceptable light source, such as natural daylight	80
SDCM SDCM SDCM, or ‘Standard Deviation of Color Matching,’ is a key metric in evaluating color consistency, especially in LED production. The SDCM value for an LED chip, specified as the initial value, is crucial. A lower SDCM indicates superior color consistency, making it essential for applications requiring accurate and consistent color rendering, such as in commercial, professional, retail, and art settings.	6

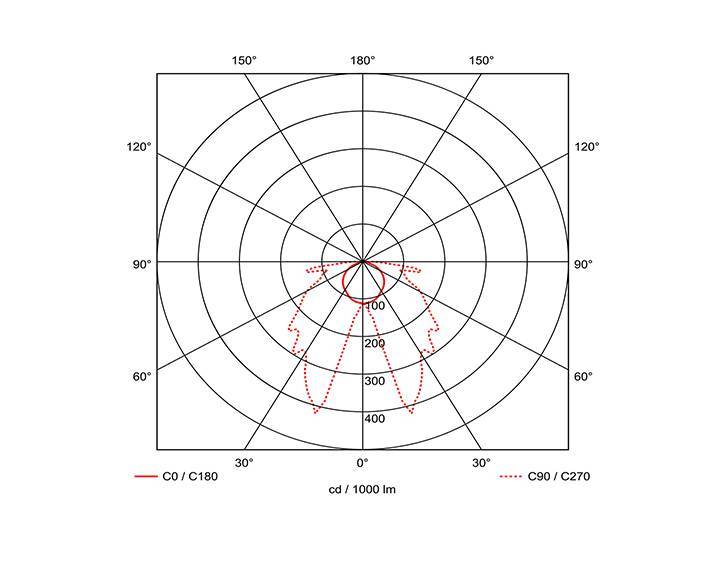

Beam Angle Beam Angle A ‘beam angle,’ also known as ‘beam spread,’ quantifies the spread of light emitted from the source. Measured in degrees, it extends from the ‘Peak Intensity’ of the light source to the point where the measured light diminishes to 50% of the maximum peak intensity.	130
Class Class Class I – Luminaires in this class are electrically insulated and provided with connection with earth. Class II – Luminaires are designed and constructed so that protection against electric shock does not rely on basic insulation only. This can be achieved by means of reinforced or double insulation. No provision for Earthing is provided. Class III – Protection against electric shock relies on the supply of Safety Extra Low Voltage (SELV) and in which voltages higher than those of SELV are not generated (Max.50V ac or below).	1
IP Rating IP Rating IP rating is a global standard showing how resistant a product is against the intrusion of solids and liquids. The first numeral indicates the degree protection against the ingress of solid of objects, whereas the second numeral refers to the degree of protection against the ingress of water. The following symbols are appropriate: IP20 – Suitable for indoor spaces such as living rooms, entertaining spaces and bedrooms. IP44 – Suitable for bathrooms and kitchens, where water may be lightly sprayed. IP54 – Suitable for outdoor and bathroom use where water may be lightly sprayed. IP65 – Recommended for bathrooms, kitchens and gardens, where there may be splashing of water.	IP65
IK Rating IK Rating IK ratings are defined as a number from 00 up to 10, indicating the degree of protection against external mechanical impacts. Higher IK Ratings can be particularly useful within warehouses, or for many types of industrial projects.	IK08

Downloads

Datasheet

Instructions

Expert Advice

: Our facilities around the world are dedicated to achieving the highest standards in research, innovation, design and production. All our products go through a rigorous testing process, ensuring we can deliver quality products that make a real difference and we’re delighted to have achieved an LIA certification for our UK testing facility, which is one of only six of its kind in the industry.
: IP rating is a global standard showing how resistant a product is against the intrusion of solids and liquids. The first digit is given as a number between 0 & 6 which establishes the level of protection from a solid object, whereas the second digit is given as a number value of between 0 & 9, establishing the level of resistance to moisture. The higher the number, (but not always), the more stringent the protection. A rating of IP20 is the most common for bedrooms and living rooms, whereas light fittings rated IPX4 are protected against splashing water, making them ideally suited for indoor use, in areas such as bathrooms and kitchens, as well as some sheltered outdoor locations. Fixtures rated IPX5 are protected against water jets onto the enclosure from any direction. These fittings should be selected for gardens, exposed outdoor areas and for certain areas where a high level of protection is required.
